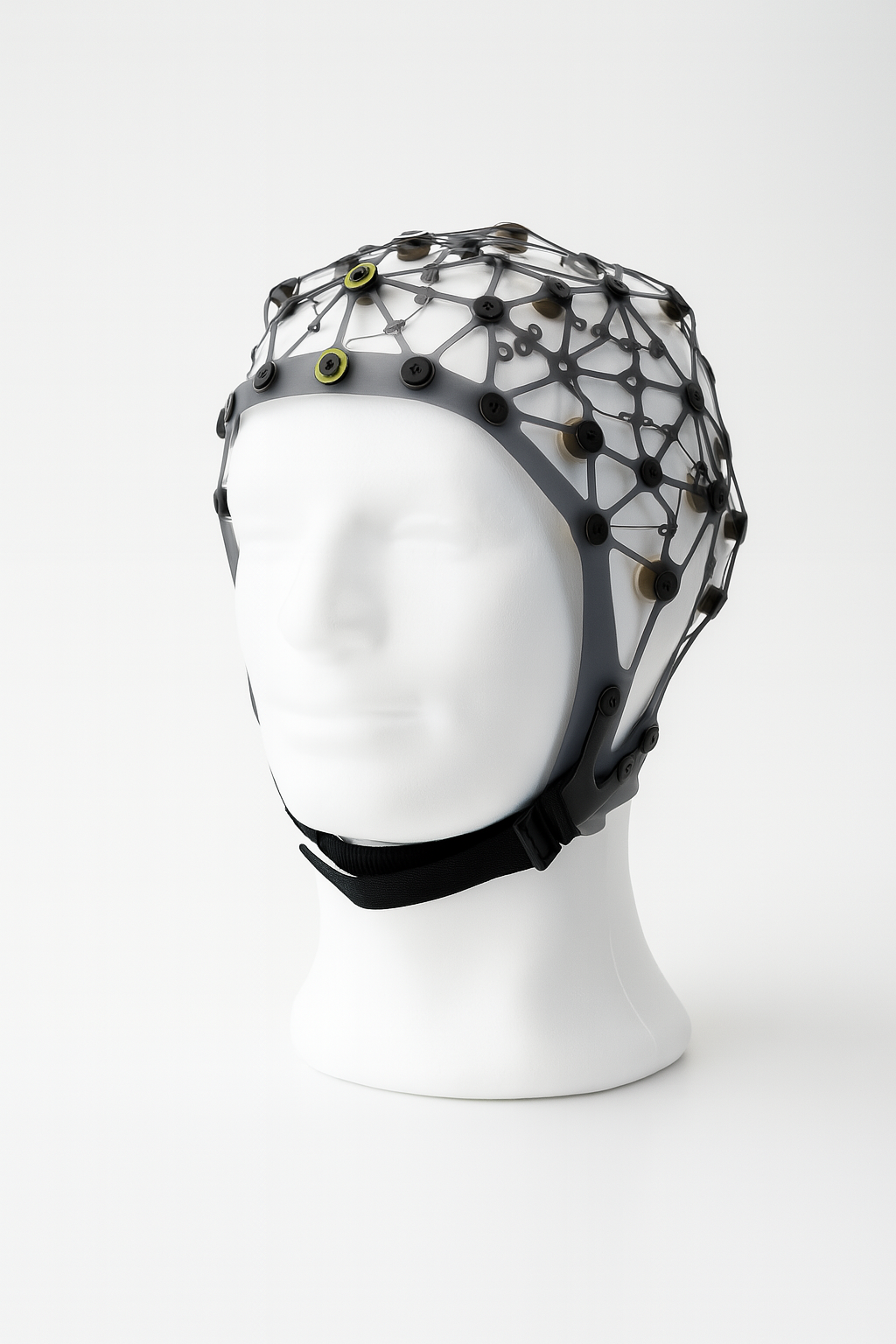

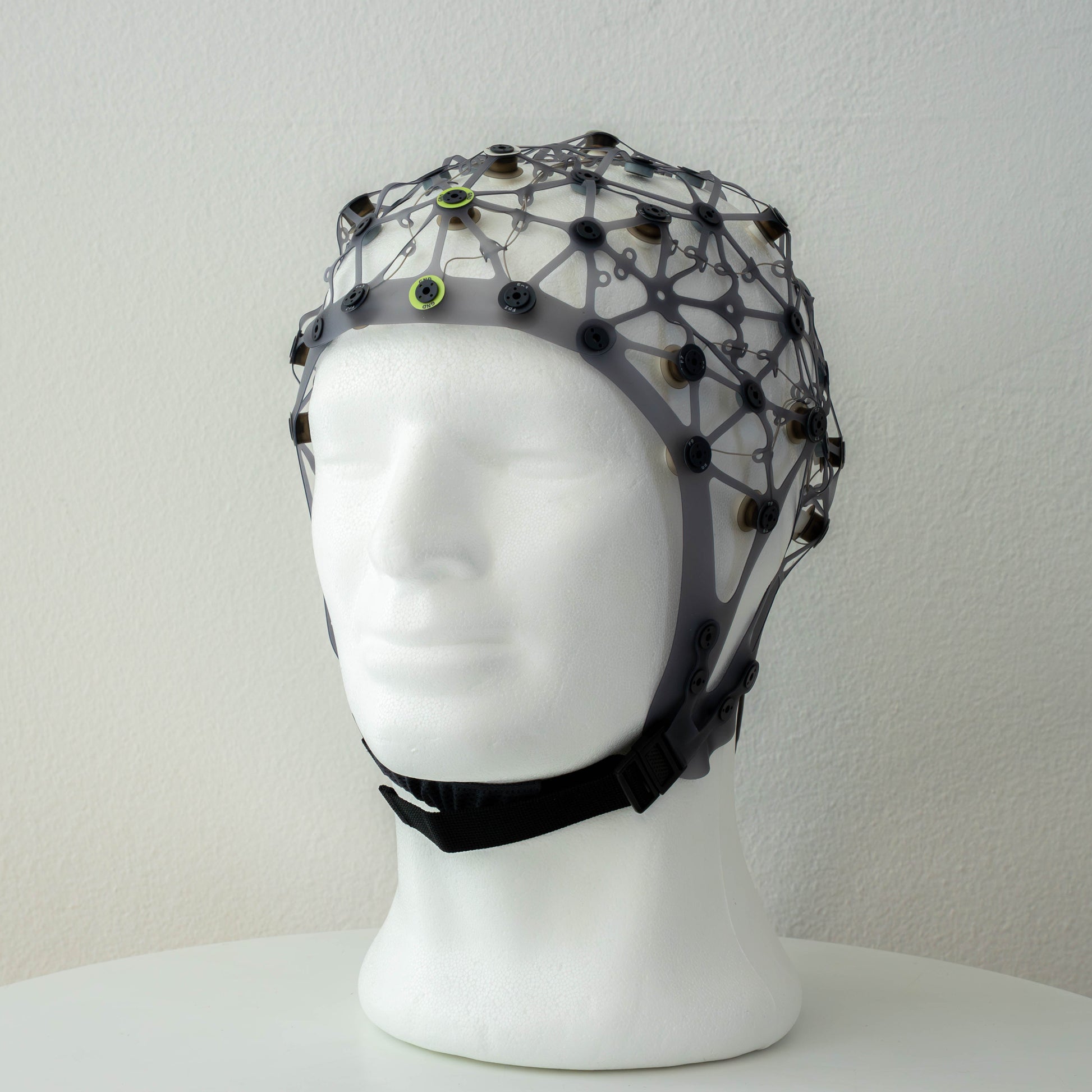

Waveguard Net 24 Channel EEG Cap (NA-246)

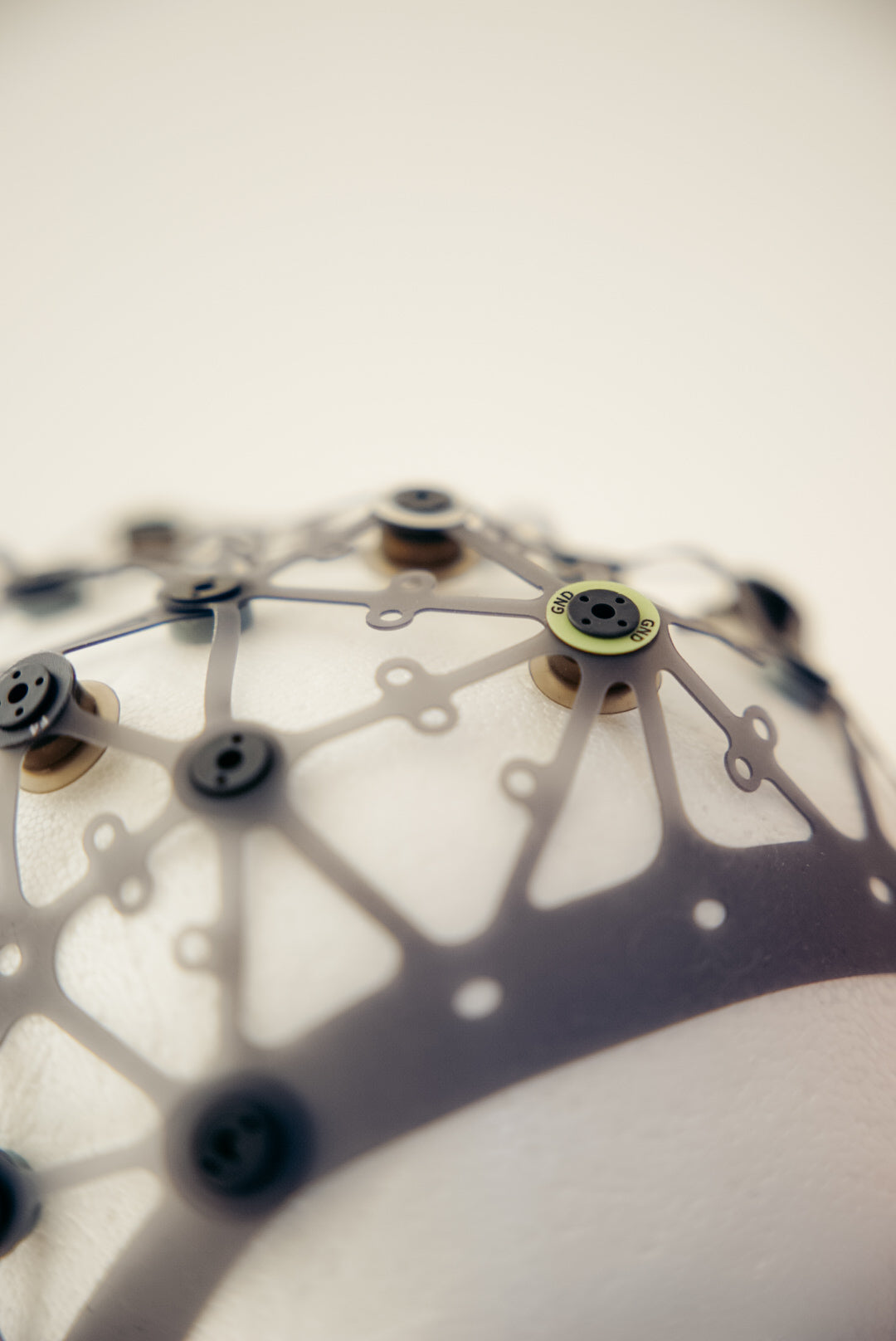

The 24-channel Waveguard Net Cap is an innovative EEG measurement solution designed for rapid, gel-free application, delivering high-quality EEG data with superior comfort for the subject. This net cap utilizes saline-soaked sponge electrode technology, ensuring excellent signal quality without the need for conventional gels.

The Waveguard Net 24-channel system allows for quick preparation and application by simply soaking, putting on, and starting recording. Its lightweight and flexible design adapts to various head shapes and ensures high wearing comfort, making it ideal for use in clinical and research environments. A standout feature is its superior active shielding, which results in cleaner signals and reduced ambient noise rejection. Amplifiers integrated into the electrodes further contribute to precise and low-noise EEG recordings.

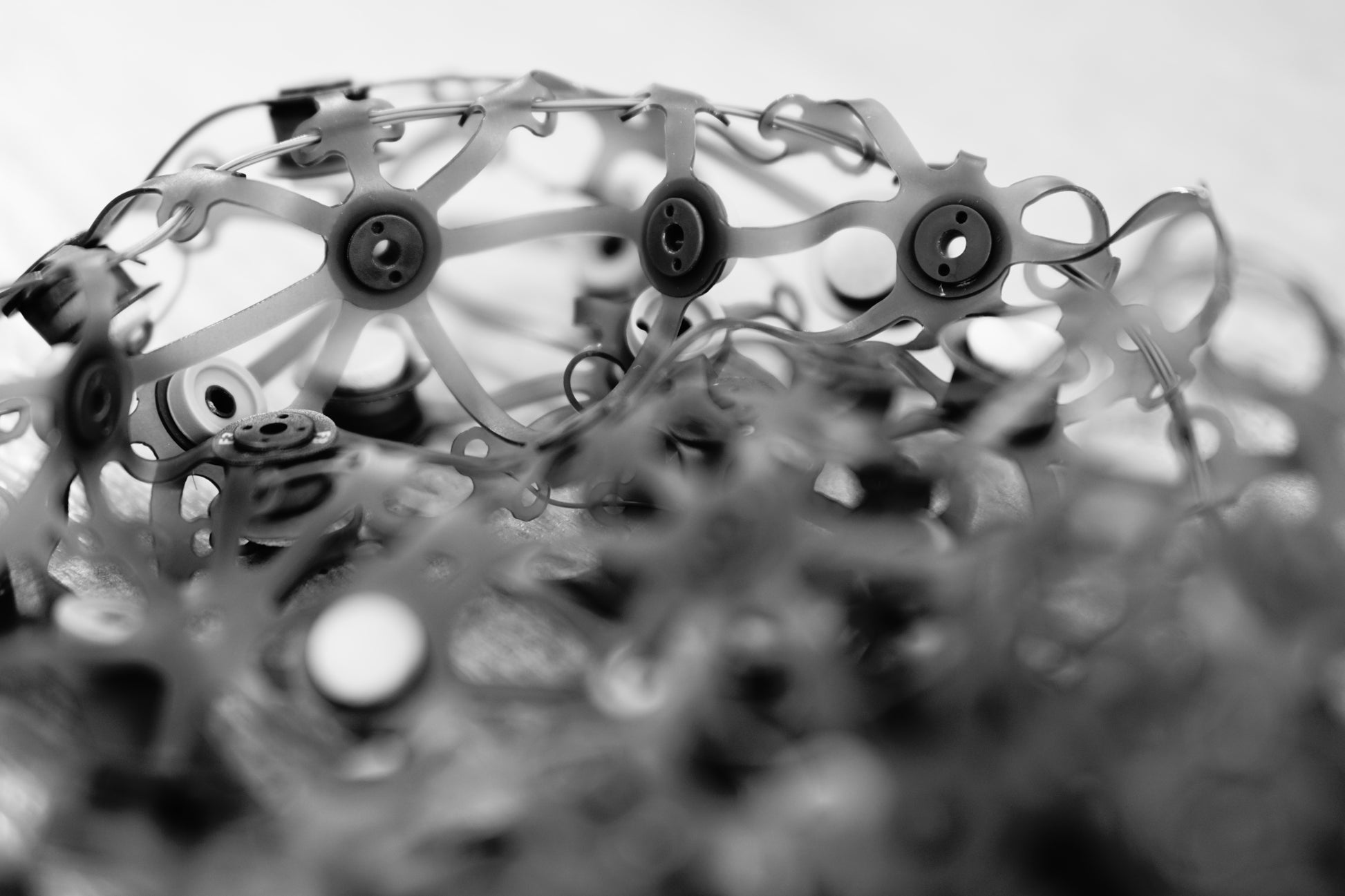

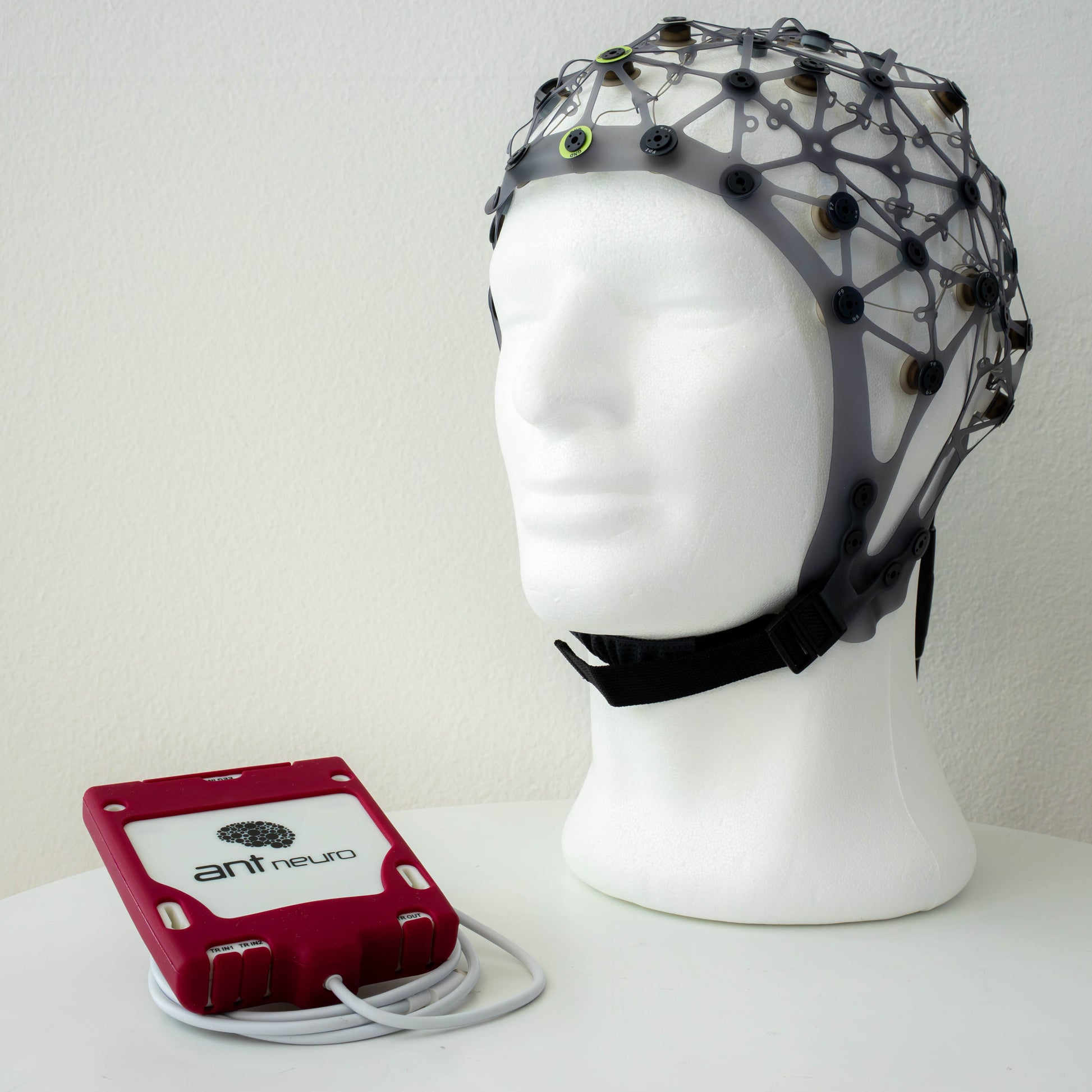

This cap is available in different sizes to fit different head sizes, from newborns to adults. It is fully compatible with eego EEG amplifier systems with a 68-pin connector (e.g. eego24 ) and offers a flexible and reliable solution for high-density EEG data acquisition. The robust and lightweight silicone structure with laser-cut design ensures durability, while a locking ring allows for easy sponge replacement.

The Waveguard Net is FDA 510(k) cleared in the USA and a CE-marked medical device according to MDR (EU) 2017/745, CE Class I.

The cap with product code NA-246 provides a suitable position for a linked-ear (LE) mastoid reference. The channels are Fp1, Fp2, F9, F7, F3, Fz, F4, F8, F10, T7/T3, C3, Cz, C4, T8/T4, P7/T5, P3, Pz, P4, P8/T6, O1, Oz, O2, CPz (REF), M1, M2, Fpz (GROUND).
